Mamiya RZ67 - how to calculate focal distance?

Discussion in 'Medium Format & Large Format' started by cestlefun17, Sep 17, 2016.

  1. cestlefun17

    cestlefun17 TPF Noob!

    Joined:
    Jul 23, 2009
    Messages:
    66
    Likes Received:
    11
    Location:
    Rhode Island
    Can others edit my Photos:
    Photos OK to edit
    When you extend the bellows on the on the Mamiyz RZ67 there are curved lines corresponding to each focal length lens so you can find the focal distance. However, there is also a ruler along the top that measures how far you have extended the bellows in millimeters.

    Is there a formula using this ruler to precisely determine the focal distance? I'm trying to figure out some formula that incorporates:

    *focal length in mm
    *bellows extension in mm
    *focal distance in mm

    For example, with a 90mm lens extended 8mm it is focused at 1.2m (1200mm). What is the formula that relates 90mm, 8mm, and 1200mm?

    Thanks!



  2. CarlH

    CarlH TPF Supporters Supporting Member

    Joined:
    Jun 7, 2014
    Messages:
    37
    Likes Received:
    9
    Location:
    Cumbria UK
    Can others edit my Photos:
    Photos OK to edit
    I would have thought you would need the distance from the film plane to the lens, not just the amount you have moved it out for any formula to work?

  3. cestlefun17

    cestlefun17 TPF Noob!

    Joined:
    Jul 23, 2009
    Messages:
    66
    Likes Received:
    11
    Location:
    Rhode Island
    Can others edit my Photos:
    Photos OK to edit
    Well the film plane never moves, so is there a constant then that I am supposed to add to the bellows extension in mm?

    The problem with using the curved lines as a guide is that sometimes your focal distance isn't marked. I can focus at exactly 1.2 meters because that is marked--I follow the 90mm lens curve on the graph and line it up with the 1.2 meters marker. But if I want to focus 1.3 meters away, I can't be as precise because 1.3 meters isn't marked on the chart.

    That ruler at the top has to be there for a reason.

  4. 480sparky

    480sparky Chief Free Electron Relocator Supporting Member

    Joined:
    Mar 8, 2011
    Messages:
    22,547
    Likes Received:
    8,088
    Location:
    Iowa
    Can others edit my Photos:
    Photos NOT OK to edit
    In terms of exposure, the difference between focusing between 1.2 and 1.3 meters is negligible.

  5. Dave442

    Dave442 No longer a newbie, moving up!

    Joined:
    Feb 1, 2015
    Messages:
    1,680
    Likes Received:
    386
    I think that Mamiya put the mm scale there to do the calculation for adjusting exposure for the bellows extension, and the chart includes the .5 and 1 stop adjustment ranges so you don't have to do the math.

    I don't think the scale is accurate enough if you want to set it to a distance and then set the camera film plane at exactly that distance from the subject and expect perfect focus, depending on your DOF it may be acceptable focus. Most of the time photographers focus and take the picture and never give more than glance at what the focusing distance was, I guess you have some special case where you want to set the distance ahead of time. That distance scale on the Mamiya is really just useful enough to know what to dial in on the lens to see what it gives as far as DOF.

    I think what you want is to take the bellows extension distance in mm and use the lens focal length in mm and from that arrive at the focusing distance. I had this link that talks about some of the math, but may need more information than just the bellows extension:
    Lens Tutorial

  6. compur

    compur No longer a newbie, moving up!

    Joined:
    Mar 6, 2008
    Messages:
    2,972
    Likes Received:
    491
    Location:
    L.A.

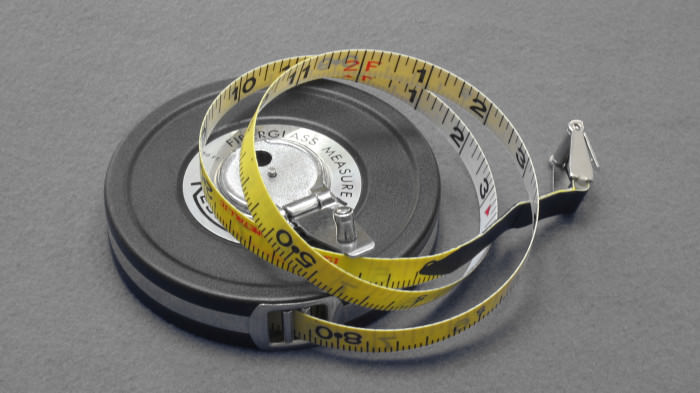

    That's why they made these things:

    [​IMG]

  7. SoulfulRecover

    SoulfulRecover Been spending a lot of time on here!

    Joined:
    Jun 8, 2010
    Messages:
    1,311
    Likes Received:
    520
    Location:
    Texas
    Can others edit my Photos:
    Photos OK to edit
    I have never used any bellows comp with my RZ and have never had an issue with exposure

  8. 480sparky

    480sparky Chief Free Electron Relocator Supporting Member

    Joined:
    Mar 8, 2011
    Messages:
    22,547
    Likes Received:
    8,088
    Location:
    Iowa
    Can others edit my Photos:
    Photos NOT OK to edit
    It's usually only an issue when focusing very close. Landscape, architecture etc. aren't really affected that much by it.

  9. SoulfulRecover

    SoulfulRecover Been spending a lot of time on here!

    Joined:
    Jun 8, 2010
    Messages:
    1,311
    Likes Received:
    520
    Location:
    Texas
    Can others edit my Photos:
    Photos OK to edit
    Ive had it completely out with the 110 lens and slide film and it was fine?

    I don't know. Ive shot a lot with it completely extended and never had an issue

  10. fmw

    fmw No longer a newbie, moving up!

    Joined:
    Sep 30, 2006
    Messages:
    3,656
    Likes Received:
    471
    I used an RZ-67 system for years. I never once used these scales. Actually I seldom used the internal metering. Of course a simply solution is to bracket exposures for closeups.
