Need help with vivitar 70-150 lens.

Patriot

No longer a newbie, moving up!
Joined
May 10, 2012
Messages
807
Reaction score
117
Location
Spokane, Washington
Can others edit my Photos
Photos OK to edit
I have a lens that's a little messed up right now.

The aperture dial turns past 3.8 and it stops at F11 instead of going to F22 as should. I can't figure it out because I opened it and looked inside to see if it was reassemble wrong. Everything inside works as should and stops at the right position. I'm starting to think that someone at the factory assembled it wrong from the start. Unless I'm missing something.


Stops at F11



Goes past the max aperture 3.8

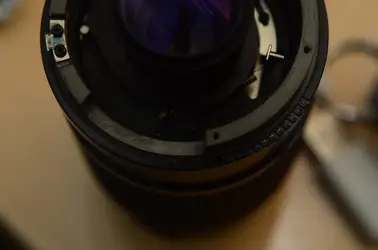

lever thing stops there as should

Same as above

I'm all ears if anyone have a clue as to what's going on.

-Hunt


BrianV

TPF Noob!
Joined
Nov 26, 2012
Messages
806
Reaction score
123
Can others edit my Photos
Photos NOT OK to edit
I've never opened one of these up - and hard to guess without having it in front of me.

Often, there is a mechanism for aligning the coupling, I would look for some screws and the linkage to have slots on it.


compur

Been spending a lot of time on here!
Joined
Mar 6, 2008
Messages
3,942
Reaction score
880
Location
L.A.
When you turn it the other way does it stop at 3.8 or go beyond it?


hfb

TPF Noob!
Joined
Dec 2, 2012
Messages
19
Reaction score
0
Location
Shreveport LA USA
Can others edit my Photos
Photos NOT OK to edit
I have a 70 to 150 Close Focus Vivitar for a Canon AE1. It goes from 3.8 to 22 then on to the green circle for Auto. I haven't used it much since the 70's.


bsinmich

TPF Noob!
Joined
Dec 25, 2012
Messages
171
Reaction score
14
Location
Holland, Mi
Can others edit my Photos
Photos NOT OK to edit
When y ou set it as far open as possible is it past the 3.8? If so does the opening get smaller as you go to the larger numbers as soon as you start moving the lever? If this is the case you may be able to use it by just puttingsome tape with different marks on it over the factory marks. On a second look it may not be the indicator for the f stop but maybe has a lever, actuator , of some sort that sits in the groove there.


compur

Been spending a lot of time on here!
Joined
Mar 6, 2008
Messages
3,942
Reaction score
880
Location
L.A.
When you turn it the other way does it stop at 3.8 or go beyond it?

It goes beyond 3.8

OK, then it's just that the position of the numbers is offset by 2 stops. When it reads f/11 it's really at f/22 and so on. If the part that has the numbers on it can be removed and repositioned correctly then that should solve it. Otherwise, as a "hack" type fix, you can apply a strip of tape over the numbers with the real numbers written on it in their correct positions.
