Step 3 - Electrical Contacts Screws

  • TWX

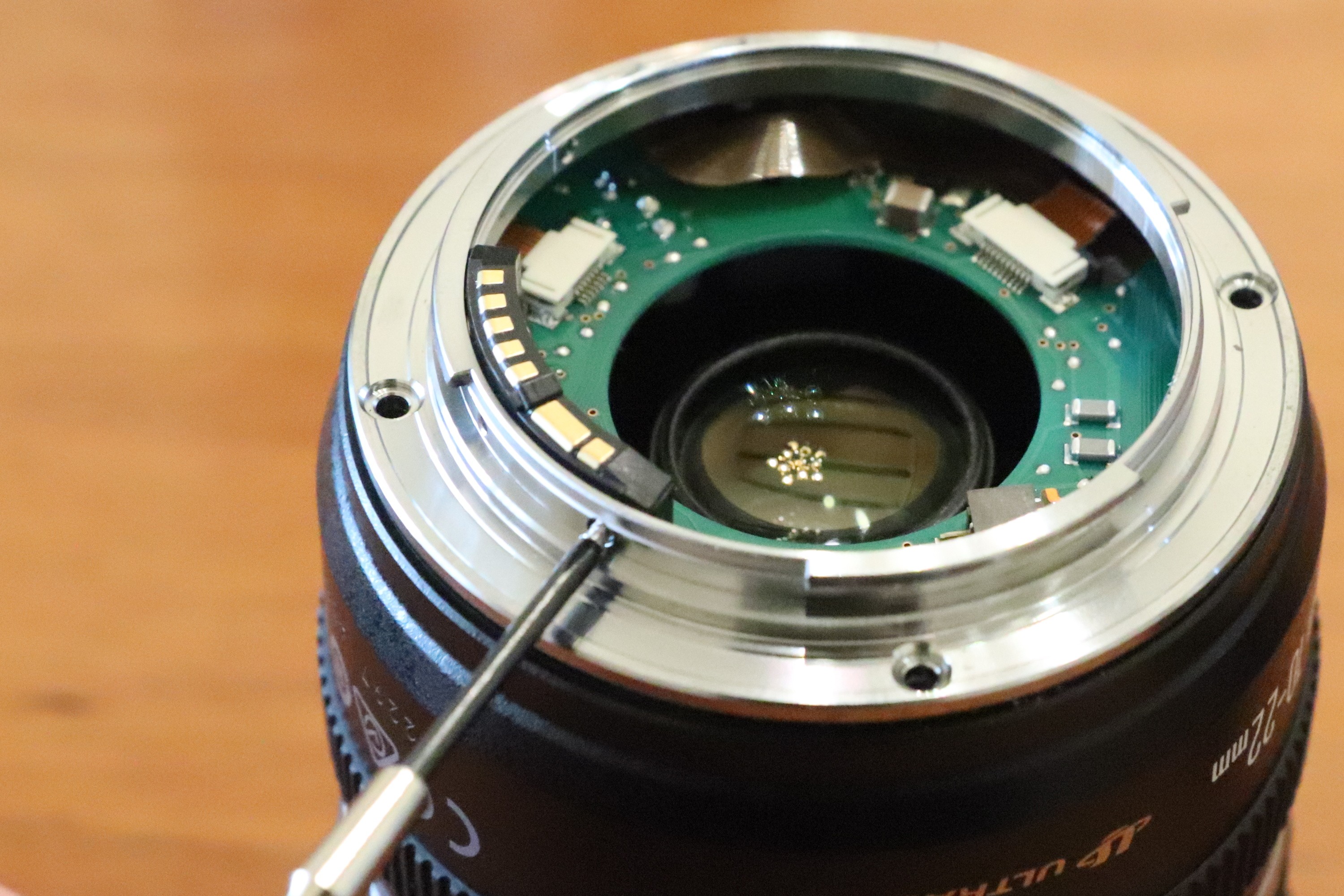

Use a #0 or #00 Phillips screwdriver to remove the two screws that retain the electrical contacts plate to the bayonet.
