Canon TLb

Discussion in 'Collector's Corner' started by Battou, Jul 6, 2008.

  1. Battou

    Battou No longer a newbie, moving up!

    Joined:
    May 10, 2007
    Messages:
    7,997
    Likes Received:
    26
    Location:
    Slapamonkey, New York
    Can others edit my Photos:
    Photos NOT OK to edit
    Need some advice on dismantling my TLb, I have to remove the topmost cover. For those who remember this thread I stated that the frame counter did not work. I was able to get that functioning again, however the cause of the failure was the plastic cover over the frame counter was poped loos and got lodged in the counter wheel. This needs to be removed otherwise the fix will only be temporary and the counter will just jam up again.

    I need to know how to remove the two cranks and the shutter speed dial so I can remove the cover completely.

  2. yellowjeep

    yellowjeep TPF Noob!

    Joined:
    Mar 21, 2008
    Messages:
    267
    Likes Received:
    0
    Location:
    Lawrence KS
    Can others edit my Photos:
    Photos NOT OK to edit
    Could you post a picture of the top of the camera?

  3. Battou

    Battou No longer a newbie, moving up!

    Joined:
    May 10, 2007
    Messages:
    7,997
    Likes Received:
    26
    Location:
    Slapamonkey, New York
    Can others edit my Photos:
    Photos NOT OK to edit
    I'll have to take some. This was the first camera I did not do that from the start....talk about irony. Yeah I'll have them as soon as possible as I don't have the camera here.

  4. compur

    compur No longer a newbie, moving up!

    Joined:
    Mar 6, 2008
    Messages:
    2,723
    Likes Received:
    400
    Location:
    L.A.
    If you've never done this before I don't recommend it. You
    should have a repair manual, special tools and preferably
    some instruction before attempting to pull a top cover.

    Removing the rewind knob is easy but the rest isn't. You'll
    need a special tool to remove the pin-faced screws on the
    shutter speed dial and advance lever. You'll also need to
    remove the parts underneath those before the cover can come
    off. There is more there than meets the eye.

    Dangers include: reverse-threaded parts that are removed by
    turning the opposite way than expected, tiny springs that fly
    away when a part is loosened, tiny ball bearings that fall out
    when a part is removed, alignments that are disturbed with
    no way to tell how they were positioned before and other
    surprises. You may also have to de-solder wires from the
    battery compartment and/or flash shoe on some models.

    Pulling a bottom cover is usually simple and safe but not
    the top. It may look pretty simple but, trust me, it isn't. :wink:

  5. Battou

    Battou No longer a newbie, moving up!

    Joined:
    May 10, 2007
    Messages:
    7,997
    Likes Received:
    26
    Location:
    Slapamonkey, New York
    Can others edit my Photos:
    Photos NOT OK to edit
    I've dismantled photographic equipment before, this will not be the first, nor the last so. The actual repair should not be hard onse I have that off, and It's not my primary camera so I am willing to take the risk.

  6. compur

    compur No longer a newbie, moving up!

    Joined:
    Mar 6, 2008
    Messages:
    2,723
    Likes Received:
    400
    Location:
    L.A.
    OK. Go for it. :wink:

  7. Battou

    Battou No longer a newbie, moving up!

    Joined:
    May 10, 2007
    Messages:
    7,997
    Likes Received:
    26
    Location:
    Slapamonkey, New York
    Can others edit my Photos:
    Photos NOT OK to edit

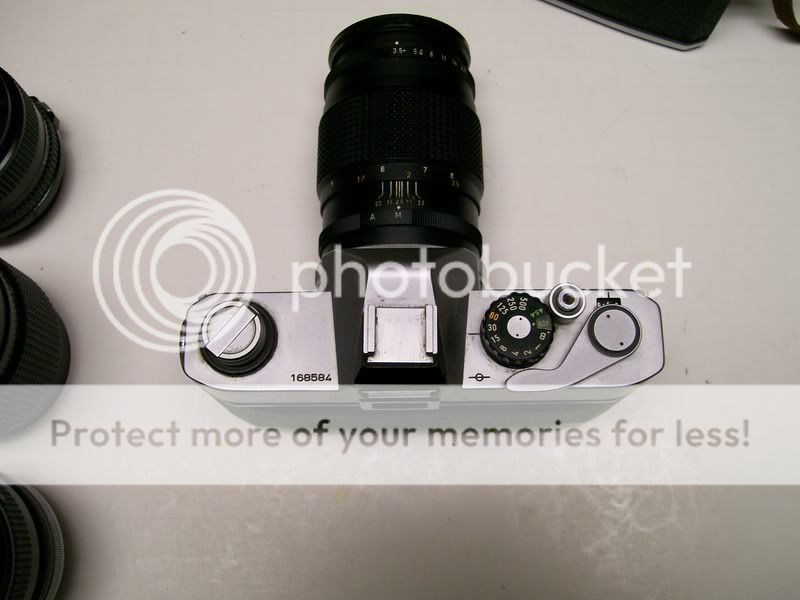

    There is not much to see on the top of this camera but...

    [​IMG]

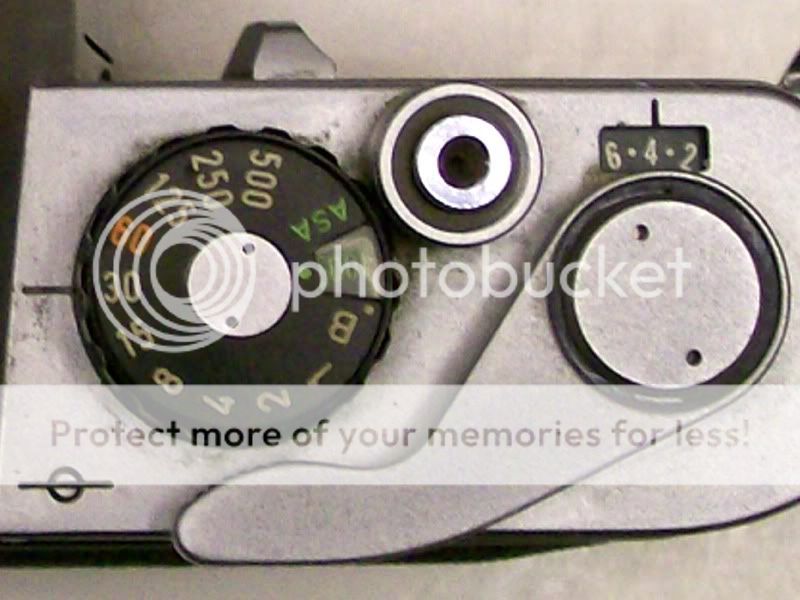

    ASA/sh speed dial and advance lever
    [​IMG]

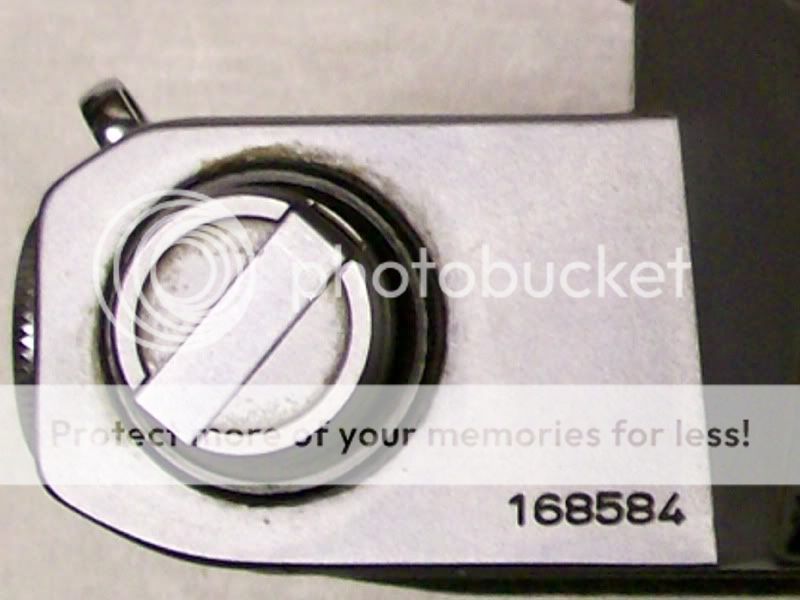

    and the rewind nob
    [​IMG]

    I've alredt figured out the advance lever and the shutterspeed dial appears to be the same so....It won't be long now.

    Last edited: Jul 16, 2008
  8. yellowjeep

    yellowjeep TPF Noob!

    Joined:
    Mar 21, 2008
    Messages:
    267
    Likes Received:
    0
    Location:
    Lawrence KS
    Can others edit my Photos:
    Photos NOT OK to edit
    I don't know how much advice I can offer here, alot more complicated than the rangefinders I take apart. I searched high and low last night and couldnt find much info. Maybe you could document the process so there is some info net.

  9. Battou

    Battou No longer a newbie, moving up!

    Joined:
    May 10, 2007
    Messages:
    7,997
    Likes Received:
    26
    Location:
    Slapamonkey, New York
    Can others edit my Photos:
    Photos NOT OK to edit
    That does sound like an idea, I would feel better if it where complete but I think I could do that.


Share This Page

Search tags for this page
battery for canon tlb
,

canon tlb

,

canon tlb battery

,
canon tlb battery replacement
,
canon tlb camera case
,
canon tlb for sale
,

canon tlb manual

,
canon tlb remove lens
,
canon tlb repair manual
,
canon tlb teardown
