Le Mignon Shutter (French)

Discussion in 'Collector's Corner' started by IanG, Feb 28, 2018.

  1. IanG

    IanG No longer a newbie, moving up!

    Joined:
    Dec 19, 2007
    Messages:
    248
    Likes Received:
    50
    Location:
    Turkey or West Midlnads UK
    Can others edit my Photos:
    Photos NOT OK to edit

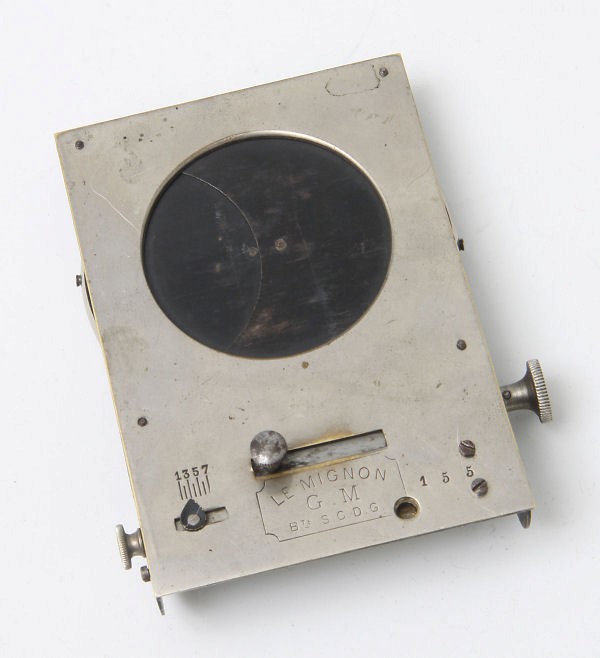

    I was given this shutter last year, seems they are very rare now, it wasn't fully functional.

    [​IMG]
    It was missing the shutter release, but did work by pushing a screw driver in the hole bottom left of the name

    [​IMG]

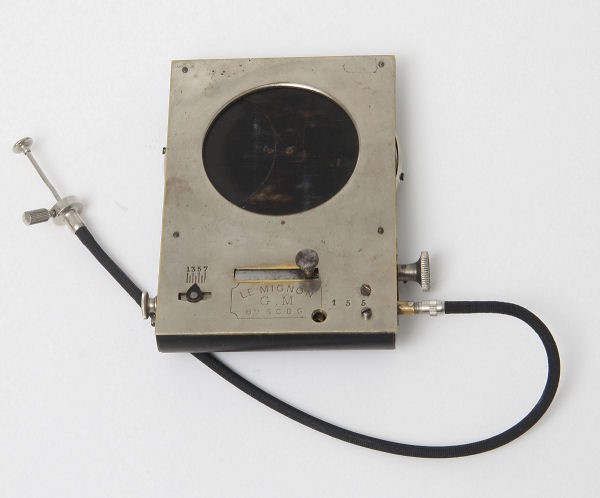

    Using a brass tube tapped at one end to take a cable release and a nail to actuate the mechanism it's now fully functional. I think the original would have been air controlled like the very first Compound lenses
    [​IMG]

    [​IMG]

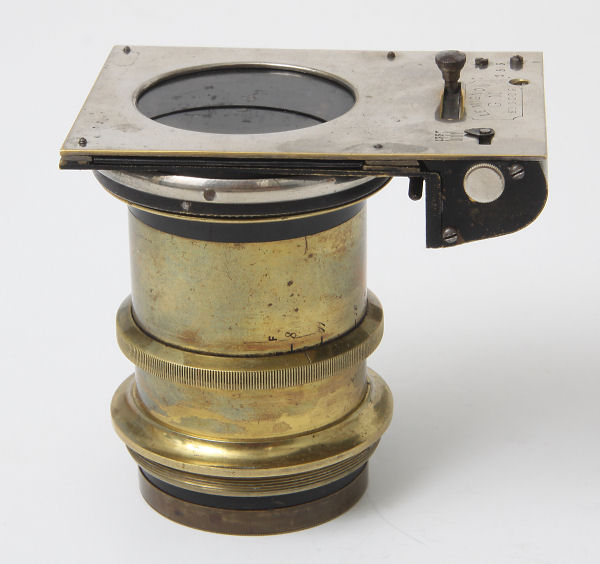

    Here it is fitted to a lens.

    [​IMG]


    Ian



    • Like Like x 7
  2. Designer

    Designer Been spending a lot of time on here!

    Joined:
    Apr 13, 2012
    Messages:
    16,722
    Likes Received:
    4,207
    Location:
    Iowa
    Can others edit my Photos:
    Photos OK to edit
    Excellent!

    • Agree Agree x 1
  3. espresso2x

    espresso2x No longer a newbie, moving up!

    Joined:
    Feb 3, 2018
    Messages:
    419
    Likes Received:
    161
    Can others edit my Photos:
    Photos NOT OK to edit
    A thing of strange beauty. Sort of :)

  4. Gary A.

    Gary A. Been spending a lot of time on here!

    Joined:
    Sep 17, 2014
    Messages:
    21,353
    Likes Received:
    7,090
    Location:
    Southern California
    Do you have plans to use it?

  5. IanG

    IanG No longer a newbie, moving up!

    Joined:
    Dec 19, 2007
    Messages:
    248
    Likes Received:
    50
    Location:
    Turkey or West Midlnads UK
    Can others edit my Photos:
    Photos NOT OK to edit
    Yes I'll use it with that RR lens, I need to test the shutter speeds the tension can be adjusted 1-7

    Ian

    • Informative Informative x 1
  6. vin88

    vin88 TPF Noob!

    Joined:
    Jan 29, 2018
    Messages:
    126
    Likes Received:
    15
    Can others edit my Photos:
    Photos NOT OK to edit
    very good post. how are you testing the shutter speeds? vin

  7. IanG

    IanG No longer a newbie, moving up!

    Joined:
    Dec 19, 2007
    Messages:
    248
    Likes Received:
    50
    Location:
    Turkey or West Midlnads UK
    Can others edit my Photos:
    Photos NOT OK to edit
    I hope to borrow a shutter speed tester, if not I'll take it to a repair shop who has one. I have quite a few shutters to test and need something more sophisticated than a home made one.

    Ian

  8. Mitica100

    Mitica100 Moderator Staff Member Supporting Member

    Joined:
    Nov 11, 2003
    Messages:
    9,803
    Likes Received:
    61
    Location:
    Ahwatukee, AZ
    Can others edit my Photos:
    Photos NOT OK to edit
    Beautiful work!

  9. Dany

    Dany No longer a newbie, moving up!

    Joined:
    Dec 13, 2011
    Messages:
    157
    Likes Received:
    280
    Location:
    Paris
    Can others edit my Photos:
    Photos NOT OK to edit
    Very nice piece of history!
    In French language, "Le mignon" means "the cute" with, for somebody or something the notion of small and beautiful.
    By the beginning of the twentieth century a lot of different similar shutters were proposed to be mounted on front of lens
    The most sophisticated ones allowed the shutter to be cocked without opening during the cocking operation !!.
    They were proposed in different sizes to fit different diameter of lens.
    Most of the shutter of the time offered both finger and bulb release.

    • Like Like x 1
  10. vintagesnaps

    vintagesnaps Been spending a lot of time on here!

    Joined:
    Jan 13, 2013
    Messages:
    7,008
    Likes Received:
    2,075
    Location:
    US
    Can others edit my Photos:
    Photos NOT OK to edit
    That's a beauty. What's the lens? It looks quite old, I'd be interested in seeing more of it.

  11. IanG

    IanG No longer a newbie, moving up!

    Joined:
    Dec 19, 2007
    Messages:
    248
    Likes Received:
    50
    Location:
    Turkey or West Midlnads UK
    Can others edit my Photos:
    Photos NOT OK to edit


    The lens is just an un-named Rapid Rectlilnear f8-64 approx 8" fl (203mm). I have quite a few RR's ranging from about 5" fl up to 20" (500mm).

    [​IMG]

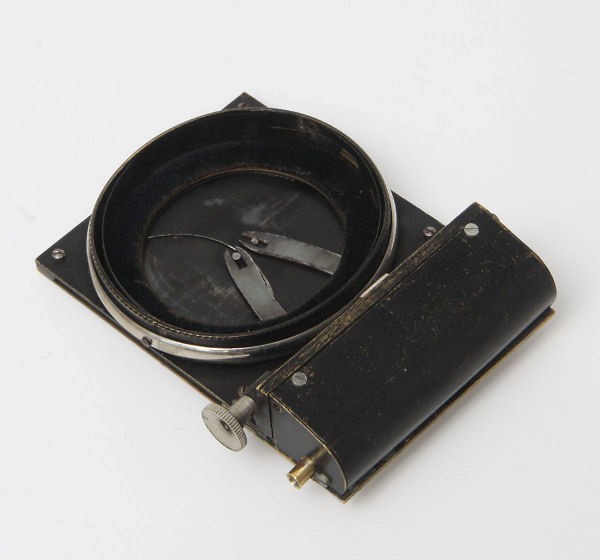

    This is a Wray f8 8" RR on a Houghton Duchess, fitted to a Thornton Pickard shutter.

    Ian
