High Speed Photos- How To

Discussion in 'General Gallery' started by rallysman, Dec 25, 2009.

  1. rallysman

    rallysman TPF Noob!

    Joined:
    Dec 17, 2009
    Messages:
    415
    Likes Received:
    0
    Location:
    Indiana
    Can others edit my Photos:
    Photos OK to edit
    Recently I shared a few of my pictures and the high speed photo seemed to be a big hit so I'll share a few more and explain how I did it.

    First, the method I used does not involve high shutter speeds or frame rates. I use the short amount of time that a flash is "on" which only exposes what's happening during that burst of light. The room is basically dark, or dim enough that it would take a while to make an exposure.

    Here's a drunken explanation of the basics:

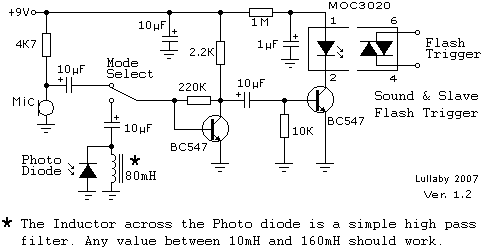

    The actual circuit that controls the flash was built based off of this one:
    [​IMG]
    (with a few minor adjustments)

    Here's a picture of the complete, sloppy, circuit:
    [​IMG]

    I attach the output of that to my SB-600 which is typically completely separate from the camera. The picture sequence is as follows:

    1: open shutter (I use 1-2 seconds)
    2: make noise (gun, splash, whatever) and flash fires almost simultaneously
    3:shutter closes

    To avoid boring you with the details, that's a very quick rundown of how I make this work. Please feel free to ask questions or suggest improvements.

    Now, here are some results:) Thanks for looking!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    I'm still trying to get the technical side down so the composure may be lacking. It sure is fun as hell to do though...talk about some stress relief!
