Back Focus Distance vs Sensor Size (i.e. discussing the true iPhone crop factor)

chip88

TPF Noob!
Joined
Mar 14, 2012
Messages
2
Reaction score
0
Location
United States
It is widely known that a smaller sensor means a larger crop factor when assuming the same back focusing distance. But for products like the iPhone where the camera module is designed from scratch, why does the same hold true? Why can't the designers use a 50mm lens, and get the same FOV as a full frame by positioning the sensor closer?

I believe the answer is, "they could, but would not be able to achieve infinity focus" although I am still unsure as to the physics of why.

here's an illustration


Derrel

Mr. Rain Cloud
Joined
Jul 23, 2009
Messages
48,227
Reaction score
18,935
Location
USA
Website
www.pbase.com
Can others edit my Photos
Photos OK to edit

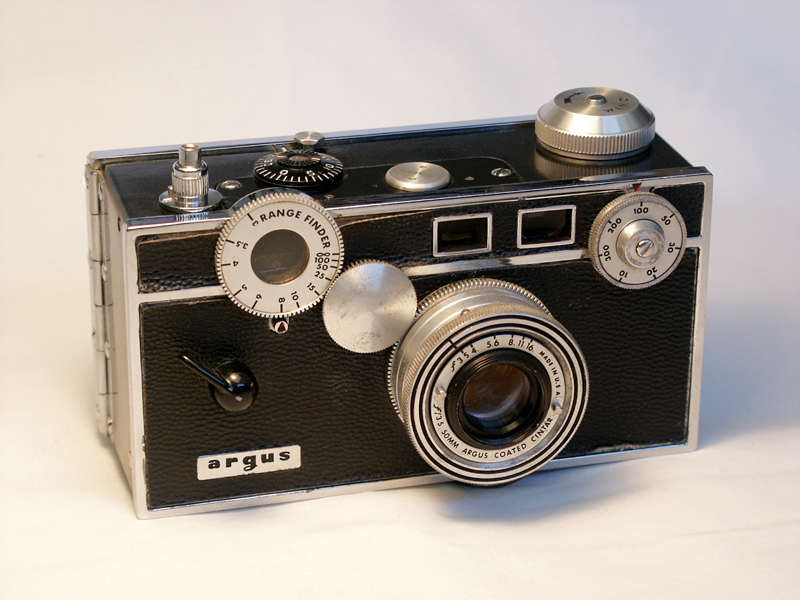

I think the answer is that the iPhone's designers were trying to avoid THIS form factor...with its 50mm f/3.5 lens...


OP
OP
C

chip88

TPF Noob!
Joined
Mar 14, 2012
Messages
2
Reaction score
0
Location
United States
I appreciate the humor but the real question is why does a smaller sensor HAVE to imply a crop factor, disregarding everything else.


Helen B

TPF Noob!
Joined
Sep 16, 2007
Messages
3,296
Reaction score
467
Location
Hell's Kitchen, New York
Can others edit my Photos
Photos NOT OK to edit
It's difficult to know where to begin. The simple answer is that you have already answered your own question - the distance between the rear nodal point and the in-focus image is determined by the distance from the front nodal point to the object and the focal length of the lens. That relationship is fixed. If you shorten the image distance (the distance between the rear nodal point and the image) while keeping the object distance the same you either have to accept an out-of-focus image or change the focal length of the lens.

Because you are shortening the back focus, you aren't just losing infinity focus, you are losing all focus.

There is truth in Derrel's humour. The longer the focal length, the larger the lens has to be at the same f-number. A 6 mm f/2 lens needs an entrance pupil of only 3 mm diameter. A 50 mm f/2 lens needs an entrance pupil of 25 mm diameter.

Last edited:

RacePhoto

Pete
Joined
Dec 29, 2006
Messages
780
Reaction score
81
Location
Wisconsin
Website
peteklinger.com
Can others edit my Photos
Photos NOT OK to edit
Isn't that a modded shutter button, for a cable release on the Argus? Always wondered why digital cameras didn't have a cable release thread in the shutter button. No really, I did at first. Still wonder on the P&S that don't have an option for some electronic button. But since pretty much all of them have a 2 second or 10 second delay I guess it works.

For the OP, always believe whatever Helen B writes. (I've learned!) Then consider this, you may have the correct field of view, but you create a number of problems, including the big one, that you pointed out yourself. Loss of Infinity focus. That means you would also lose much of your long distance focus. Maybe gain some macro capabilities?

Lets say your lens right now is almost hitting the mirror. Moving the sensor closer, you now would need a mirror-less camera.

There are some serious physical limitations involved. It wasn't just a lazy camera company, making a cropped view on a smaller sensor.
