Lighting a BIGGGGGGG space (How to)

Discussion in 'Lighting and Hardware' started by tirediron, Feb 5, 2018.

  1. tirediron

    tirediron Watch the Birdy! Staff Member Supporting Member

    Joined:
    Jul 8, 2005
    Messages:
    42,160
    Likes Received:
    12,986
    Location:
    Victoria, BC
    Can others edit my Photos:
    Photos OK to edit
    Thought this might be of interest to some... there have been a lot of posts about lighting BIG spaces, but I don't recall anyone actually showing their setup (Thanks to Derrel for the consult on this!). I was asked to shoot a Cadet parade in a local Armoury; the interior space was about 220'x80' with a ceiling about 40' high at the peak.
    My lights were 5 Speedotron Brownline M11 heads running off of 1600w/s power packs so that each light was pumping out 800 w/s. The lights were clamped to balcony supports about 18' above the floor and aimed up to bounce (more or less) off the ceiling:
    [​IMG]
    The lights were held in place with magic clamps, and the cord was passed twice through a turn-buckle as a safety measure in case the clamp let go; had the turn-buckle not been there I would have added para-cord safety lines.
    [​IMG]

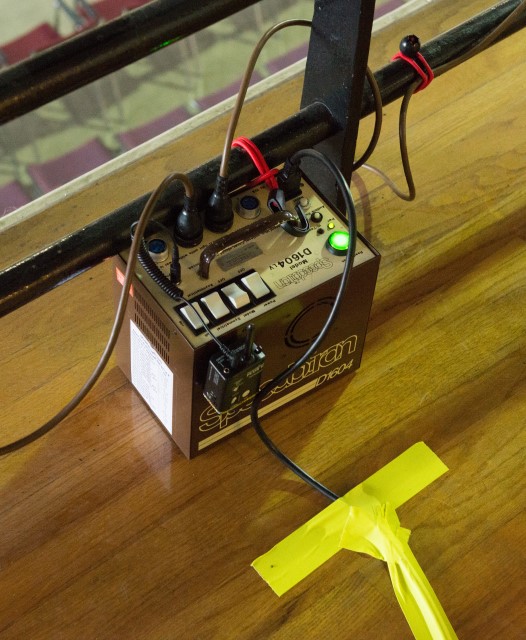

    This balcony area was open to the public, and while it wasn't expected to be used much, if at all, I didn't want to take any chances. Here you can see my cables ball-bungeed to the railing, the power cord is gaf-taped down, and the power supply has a safety cord (it's too tall to fit under the railing):
    [​IMG]

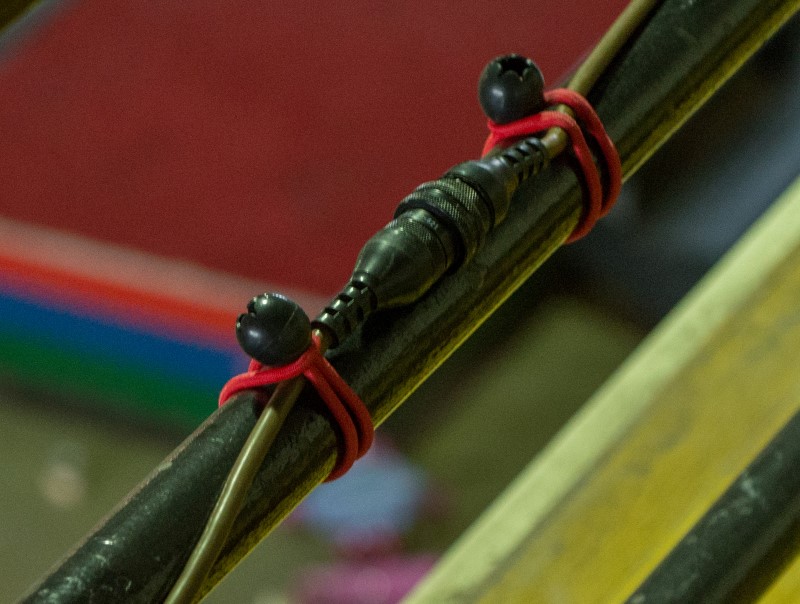

    Ball bungees keeping the extension cord secure and out of the way:
    [​IMG]
    As an added precaution, the handles on the magic clamps were also gaf-taped to prevent idle twiddling:
    [​IMG]

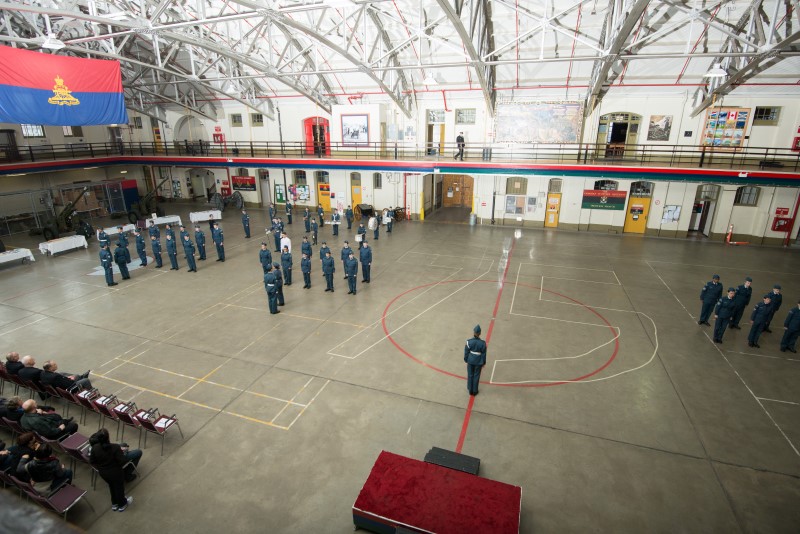

    Here's a partial view of the space; you can see the hot spot from the light, but as I wasn't shooting on the balcony, I wasn't concerned; the idea was to get an even, flat light on the floor to produce the best overall photos:
    [​IMG]
    The goal was to get sufficient light to allow me to shoot sync speed (1/250) at f5.6 <ISO 800. The general results looked something like this:
    [​IMG]
    Not bad for a space lit with metal-halide arc lights and a few gable windows. Base exposure without flash was ISO 1600, 1/25, f2.8.



    • Like Like x 8
    • Informative Informative x 3
    • Useful Useful x 1
  2. Derrel

    Derrel Mr. Rain Cloud

    Joined:
    Jul 23, 2009
    Messages:
    41,382
    Likes Received:
    15,663
    Location:
    USA
    Can others edit my Photos:
    Photos OK to edit
    Errrrrr ya' go!

    • Like Like x 1
  3. ac12

    ac12 No longer a newbie, moving up!

    Joined:
    Dec 5, 2017
    Messages:
    904
    Likes Received:
    296
    Can others edit my Photos:
    Photos NOT OK to edit
    Good job.

    I like the ball bungees. I gotta get me some of them.

    • Like Like x 1
  4. tirediron

    tirediron Watch the Birdy! Staff Member Supporting Member

    Joined:
    Jul 8, 2005
    Messages:
    42,160
    Likes Received:
    12,986
    Location:
    Victoria, BC
    Can others edit my Photos:
    Photos OK to edit
    Thanks! It worked out well. Yeah, ball-bungees are realllllllly handy! People wonder why I tote this huge tool box full of grip gear... jobs like this are why.

  5. tirediron

    tirediron Watch the Birdy! Staff Member Supporting Member

    Joined:
    Jul 8, 2005
    Messages:
    42,160
    Likes Received:
    12,986
    Location:
    Victoria, BC
    Can others edit my Photos:
    Photos OK to edit
    Thanks again!

  6. snowbear

    snowbear fuzzy-wuzzy Supporting Member

    Joined:
    Dec 9, 2006
    Messages:
    13,914
    Likes Received:
    5,266
    Location:
    SoMD
    Can others edit my Photos:
    Photos OK to edit
    VERY nice.

    • Like Like x 1
  7. smoke665

    smoke665 TPF Supporters Supporting Member

    Joined:
    Mar 29, 2016
    Messages:
    7,430
    Likes Received:
    3,164
    Location:
    Alabama
    Can others edit my Photos:
    Photos OK to edit
    Thanks for sharing your setup. Always interesting to see how you make lemonade out of lemons.

    • Like Like x 1
  8. tirediron

    tirediron Watch the Birdy! Staff Member Supporting Member

    Joined:
    Jul 8, 2005
    Messages:
    42,160
    Likes Received:
    12,986
    Location:
    Victoria, BC
    Can others edit my Photos:
    Photos OK to edit
    Thanks! :)

    Thanks! It wasn't actually all that difficult, but it relies on having more gear than the average bear....

    • Funny Funny x 1
  9. Christie Photo

    Christie Photo No longer a newbie, moving up!

    Joined:
    Jan 7, 2005
    Messages:
    7,099
    Likes Received:
    103
    Location:
    Kankakee, IL
    Ambitious! I hope you had some help setting up.

    I've got a lot of the same gear, but I'm pretty sure I wouldn't have done all that work. You get a HUGE atta boy! Very nice.

    -Pete

    • Like Like x 1
  10. tirediron

    tirediron Watch the Birdy! Staff Member Supporting Member

    Joined:
    Jul 8, 2005
    Messages:
    42,160
    Likes Received:
    12,986
    Location:
    Victoria, BC
    Can others edit my Photos:
    Photos OK to edit


    Thanks Pete! Nope, just little old me, but that's my preference. I work best alone, and that way if something is f'd up, I can only blame me. The cadets is a fantastic organization, and I figure it won't kill me to give them a hand.
