What is it?

Discussion in 'Photographic Discussions' started by tirediron, Jul 13, 2019.

  1. tirediron

    tirediron Watch the Birdy! Staff Member Supporting Member

    Joined:
    Jul 8, 2005
    Messages:
    44,381
    Likes Received:
    13,998
    Location:
    Victoria, BC
    Can others edit my Photos:
    Photos OK to edit
    [​IMG]

    Any guesses? More to follow later on "in action" and with explanations....



  2. smoke665

    smoke665 TPF Supporters Supporting Member

    Joined:
    Mar 29, 2016
    Messages:
    10,829
    Likes Received:
    4,914
    Location:
    Alabama
    Can others edit my Photos:
    Photos OK to edit
    I'd guess beer cooler but it wouldn't hold ice. LOL

    Some sort of "wrap around" reflector???

    • Like Like x 2
  3. Dean_Gretsch

    Dean_Gretsch Always looking... Supporting Member

    Joined:
    Apr 25, 2016
    Messages:
    8,319
    Likes Received:
    5,687
    Location:
    Northeastern Pennsylvania
    Can others edit my Photos:
    Photos NOT OK to edit
    Zombiesniper's snowy blind?

    • Like Like x 2
    • Funny Funny x 1
  4. Dean_Gretsch

    Dean_Gretsch Always looking... Supporting Member

    Joined:
    Apr 25, 2016
    Messages:
    8,319
    Likes Received:
    5,687
    Location:
    Northeastern Pennsylvania
    Can others edit my Photos:
    Photos NOT OK to edit
    A horizontal holder for backdrops

    • Like Like x 2
  5. vintagesnaps

    vintagesnaps Been spending a lot of time on here!

    Joined:
    Jan 13, 2013
    Messages:
    8,086
    Likes Received:
    2,478
    Location:
    US
    Can others edit my Photos:
    Photos NOT OK to edit
    You're not going over any falls in it are ya?

    First thought it reminded me of a drying cabinet for negatives! lol but I'm thinking something to store rolls and feed sheets of paper, backdrops, something thru the slot.

    • Like Like x 1
  6. tirediron

    tirediron Watch the Birdy! Staff Member Supporting Member

    Joined:
    Jul 8, 2005
    Messages:
    44,381
    Likes Received:
    13,998
    Location:
    Victoria, BC
    Can others edit my Photos:
    Photos OK to edit
    And we have a winnnnnnnnnnnnnnnnnnnnnnnnnner....

    It's my home-brew set up for shooting sterling silver on white. I recently picked up a fairly lucrative, on-going job with a local jewelry maker, and one of the tasks is shooting her sterling silver line on pure white for on-line sales. This is NOT the easiest thing to do as controlling reflections is a <female dog>, so the best approach is to minimize the amount of things that there are to reflect.

    The "barrel" is three sheets of heavy-weight white posterboard, with slats from a discarded commercial Venetian blind used to reinforce the top, bottom, and edges of the opening, and [literally] half a roll of white gaff tape. The blind slats allow me to adjust the opening width to suit the item being photographed and the area above and below the lens is blocked with white craft foam.

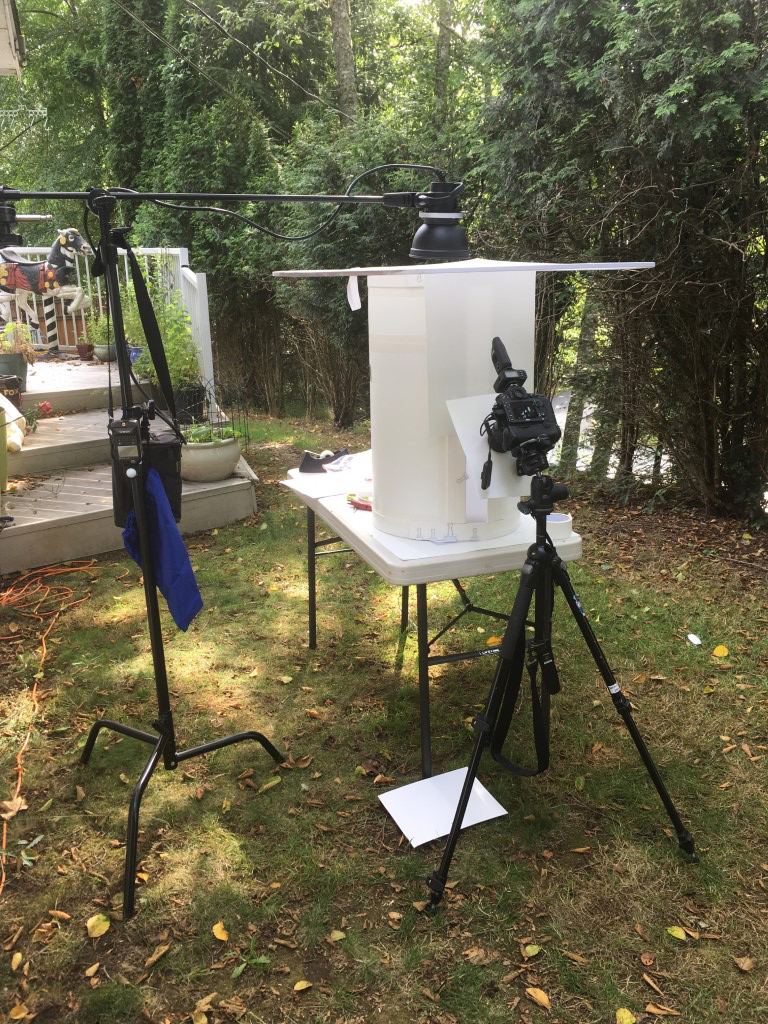

    Here's the full set-up:

    [​IMG]

    The "barrel" sits on another piece of white card, and the key light is from above with a diffusion panel over top of the "barrel".

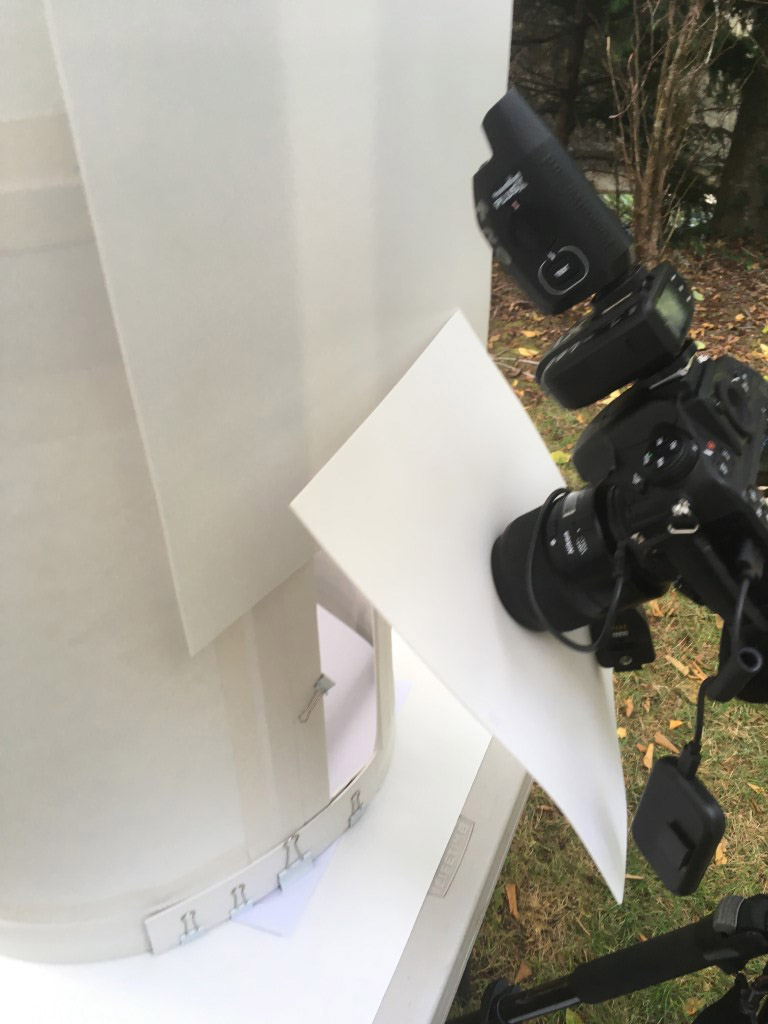

    I also have a piece of white craft foam with a whole cut out of it to slip over my lens, and 'though it's not visible here, I also have the front of the lens lined with white gaff tape.

    [​IMG]

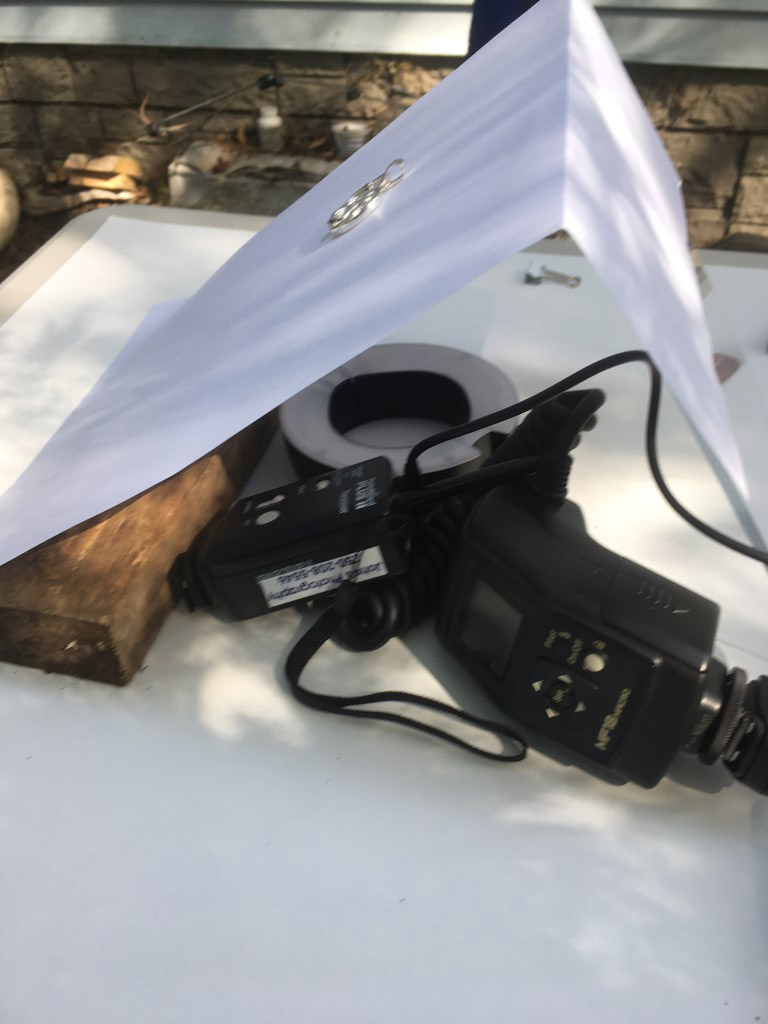

    The item sits on a piece of clear plexiglass covered with a sheet of white paper.

    [​IMG]

    A light from below provides the "white" for e-commerce 'sites; in this case a macro ring flash which provides a more even, wider spread at a such a short distance. The objects are held im place by double-sided tape, Stickum, clear adhesive and whatever else works.

    With minor processing, this produces results like this:

    [​IMG]

    [​IMG]

    Last edited: Jul 13, 2019
    • Like Like x 6
    • Winner Winner x 2
  7. tirediron

    tirediron Watch the Birdy! Staff Member Supporting Member

    Joined:
    Jul 8, 2005
    Messages:
    44,381
    Likes Received:
    13,998
    Location:
    Victoria, BC
    Can others edit my Photos:
    Photos OK to edit
    You should be so lucky! :p

    • Funny Funny x 1
  8. vintagesnaps

    vintagesnaps Been spending a lot of time on here!

    Joined:
    Jan 13, 2013
    Messages:
    8,086
    Likes Received:
    2,478
    Location:
    US
    Can others edit my Photos:
    Photos NOT OK to edit
    Aren't you clever? And nice scenery, love that creek running thru in the background, looks very peaceful, Calgon take me away!

    • Like Like x 1
  9. smoke665

    smoke665 TPF Supporters Supporting Member

    Joined:
    Mar 29, 2016
    Messages:
    10,829
    Likes Received:
    4,914
    Location:
    Alabama
    Can others edit my Photos:
    Photos OK to edit
    @tirediron Well aren't you a handy dandy! Looks like it does the job.

  10. Derrel

    Derrel Mr. Rain Cloud

    Joined:
    Jul 23, 2009
    Messages:
    44,750
    Likes Received:
    17,010
    Location:
    USA
    Can others edit my Photos:
    Photos OK to edit
    It looks like a very good purpose built shooting set up

    • Like Like x 1
  11. tirediron

    tirediron Watch the Birdy! Staff Member Supporting Member

    Joined:
    Jul 8, 2005
    Messages:
    44,381
    Likes Received:
    13,998
    Location:
    Victoria, BC
    Can others edit my Photos:
    Photos OK to edit
    Thanks Smoke; seems to work very well, with totally repeatable results, and post is down to 1-2 minutes per image. Not bad for round, polished silver on pure white! :D

    Cheers! It's amazing what you can bodge together out of crap laying around the house!

    • Like Like x 2
  12. jcdeboever

    jcdeboever TPF Supporters Supporting Member

    Joined:
    Sep 5, 2015
    Messages:
    17,446
    Likes Received:
    11,167
    Location:
    Michigan
    Can others edit my Photos:
    Photos OK to edit


    Neat setup.
