Vivitar 90-230mm lens adapter help

Discussion in 'Photography Equipment & Products' started by Rizzo115, Jul 17, 2018.

  1. Rizzo115

    Rizzo115 TPF Noob!

    Joined:
    Jul 17, 2018
    Messages:
    16
    Likes Received:
    0
    Can others edit my Photos:
    Photos NOT OK to edit
    Hey friends,

    Just recently aquired a vivitar 90-230mm l.4.5 auto lens. It has an adpater (maybe minolta) on it but I do not know how to take it off.

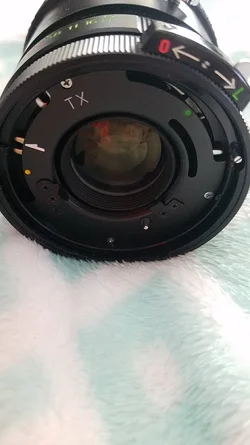

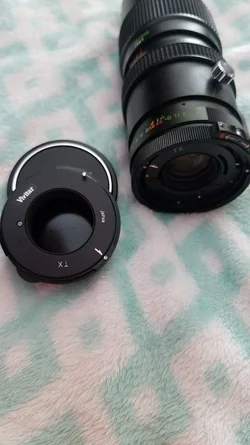

    Pictures attached.

    Thanks for the help.




    Attached Files:

  2. john.margetts

    john.margetts No longer a newbie, moving up!

    Joined:
    Dec 3, 2015
    Messages:
    1,038
    Likes Received:
    252
    Location:
    Lincoln
    Can others edit my Photos:
    Photos OK to edit
    If it is a T mount it will just unscrew. You don't show the mount in your pictures. Why do you think it is Minolta?

    Sent from my 8070 using Tapatalk

    • Agree Agree x 1
  3. Rizzo115

    Rizzo115 TPF Noob!

    Joined:
    Jul 17, 2018
    Messages:
    16
    Likes Received:
    0
    Can others edit my Photos:
    Photos NOT OK to edit
    I saw a similar photo showing exactly what my pictures show and the person listed it as a mount. Just so I understand, my lens is 1 entire lens vivitar lens then, these are not 2 separate lenses/parts?


    Attached Files:

  4. dxqcanada

    dxqcanada Been spending a lot of time on here!

    Joined:
    Dec 4, 2008
    Messages:
    6,399
    Likes Received:
    1,013
    Location:
    Woodbridge, Ontario, Canada
    Can others edit my Photos:
    Photos OK to edit
    You really should take off that end cap ... and then show us a picture of the mount.

    • Like Like x 1
  5. Rizzo115

    Rizzo115 TPF Noob!

    Joined:
    Jul 17, 2018
    Messages:
    16
    Likes Received:
    0
    Can others edit my Photos:
    Photos NOT OK to edit
    My fault I'm not clear, to show you that picture, how do I take that end cap off? It seems stuck, no matter how I turn it. Any ideas on removing the cap?

  6. dxqcanada

    dxqcanada Been spending a lot of time on here!

    Joined:
    Dec 4, 2008
    Messages:
    6,399
    Likes Received:
    1,013
    Location:
    Woodbridge, Ontario, Canada
    Can others edit my Photos:
    Photos OK to edit
    Hmm, I agree with John ... it looks like a screw mount, so you could just unscrew it, though it might be very tight.

    • Agree Agree x 1
  7. Rizzo115

    Rizzo115 TPF Noob!

    Joined:
    Jul 17, 2018
    Messages:
    16
    Likes Received:
    0
    Can others edit my Photos:
    Photos NOT OK to edit

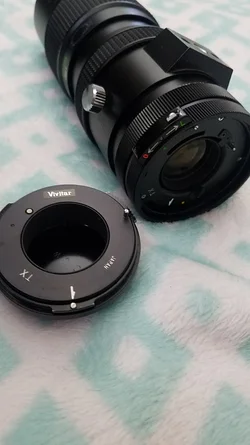

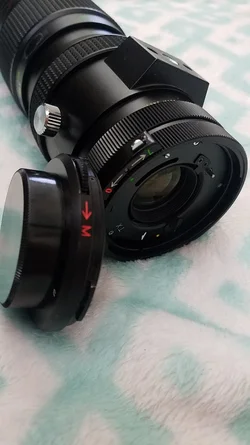

    Finally got it off.. how to determine what camera it fits?


    Attached Files:

    Last edited: Jul 17, 2018
  8. pendennis

    pendennis No longer a newbie, moving up!

    Joined:
    Jun 9, 2014
    Messages:
    216
    Likes Received:
    92
    Location:
    Dearborn, MI
    Can others edit my Photos:
    Photos NOT OK to edit
    What you have is a Vivitar TX mount, similar to the earlier T4 mounts. You can use TX mounts on T4 cameras, but not the reverse. Here's a page which has the instructions for removing/mounting the TX adapter. I have several TX lenses which have variously, Pentax, Olympus, and Canon adapters. There's lots of non-relevant data on this page.

    Popular Science

    Notice that the f/stop dial numbers go in both directions, depending on the adapter fit. Nikon goes one way, others go the other. Without seeing the mount, I'm guessing that it's for Pentax (U - Universal) M42. You can find TX mounts for various camera makes on eBay. I've purchased a number of them there. Your lens was made by Tokina (1st two number of lens serial number (37) decodes to Tokina). If you search eBay, you can find them under Tokina's brand.

    • Winner Winner x 1
  9. Rizzo115

    Rizzo115 TPF Noob!

    Joined:
    Jul 17, 2018
    Messages:
    16
    Likes Received:
    0
    Can others edit my Photos:
    Photos NOT OK to edit
    Pendennis, thank you very much for detailed response.

  10. Derrel

    Derrel Mr. Rain Cloud

    Joined:
    Jul 23, 2009
    Messages:
    41,389
    Likes Received:
    15,666
    Location:
    USA
    Can others edit my Photos:
    Photos OK to edit
    Perhaps the easiest way to determine what mount a lens is is to have a set of factory-logo-equipped rear lens caps... Nikon-F,Pentax-K,Minolta manual focus,Olympus OM,Canon FD, m42 thread mount, Yashica/Contax being perhaps the seven most-common mounts. When you go to some off the beaten path pawnshop and sort through the boxes of accumulated, cast-off 35mm legacy lenses, a quick test-fit of the lens caps can easily show what mount a store-branded lens actually "is"....without the need for a lot of expertise in lens mounts.

    Pendennis and I agree on the thought that the lens's current mount or fitting is likely m42 thread, also called universal thread mount, sometimes called "Pentax screw-mount"...what makes me think that is the red-lettered "M" switch and the appearance of the rear cap: shallow...like so,so many m42 thread caps. The Auto-M stopdown switch was super-common on m42 lenses.

    BTW, you have not, yet, shown us the actual rear mount fitting, only the inside of the lens where the T-adpater fits on...you need to show the rear-most part of the lens, the part under the rear lens cap...if we are to be absolutely positive of what it is. Try turning the rear lens cap counter-clockwise with your left hand with the lens placed front-element down on the desk.

    • Like Like x 1
  11. Rizzo115

    Rizzo115 TPF Noob!

    Joined:
    Jul 17, 2018
    Messages:
    16
    Likes Received:
    0
    Can others edit my Photos:
    Photos NOT OK to edit

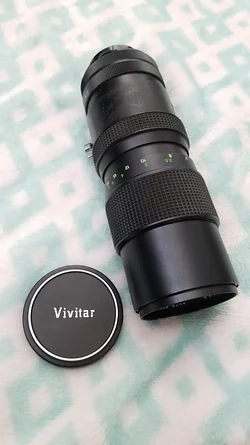

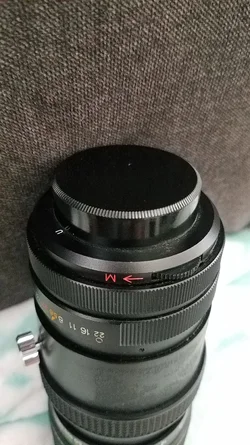

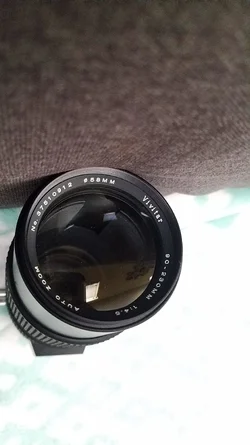

    These are the last pictures I have of all angles of the lens. Not sure if you mean a piece screws off the end cap because I don't see where it would.


    Attached Files:

  12. Derrel

    Derrel Mr. Rain Cloud

    Joined:
    Jul 23, 2009
    Messages:
    41,389
    Likes Received:
    15,666
    Location:
    USA
    Can others edit my Photos:
    Photos OK to edit


    The end cap comes off. The thing that caps the end. The cap. The rear lens cap comes off.
