Unittic Light Meter

Discussion in 'Photography Equipment & Products' started by maddiep213, Dec 17, 2020.

  1. maddiep213

    maddiep213 TPF Noob!

    Joined:
    Dec 17, 2020
    Messages:
    1
    Likes Received:
    0
    Can others edit my Photos:
    Photos NOT OK to edit

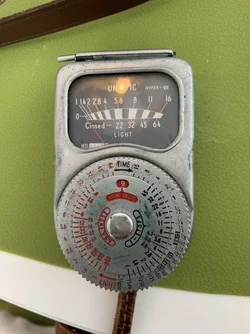

    Hello, I recently inherited a Voigtlander Vito B manual camera and a Unittic light meter. I have no idea how to work the light meter, and after some research I am still very confused, as most demonstrations online have meters with ASA windows which this does not. Does anyone have experience with this / know how to properly work and read it? Thanks




    Attached Files:

  2. Strodav

    Strodav TPF Supporters Supporting Member

    Joined:
    Nov 25, 2018
    Messages:
    337
    Likes Received:
    136
    Location:
    Houston, Tx
    Can others edit my Photos:
    Photos NOT OK to edit
    I am not familiar with your particular meter, but have used many over the years. I still take my Luna pro with me on shoots. When you push the button you get an EV reading, i,e., luminance. You rotate the dial until you see the EV reading in the window. You also need to dial in the ISO rating. Now look for an f stop and read the appropriate shutter speed or visa versa, chosen shutter speed shows the appropriate f stop. Most meters can read incident, or ambient, light or reflected light from the subject, just like your camera meter. There is usually a diffuser you slide over the sensor to read incident light, which must be slid off to the slide to read reflected light. You camera’s metering system won’t exactly match your light meter, but should be reasonably close depending on your camera settings. If it’s a very old meter, the sensors tend to degrade over the years. Hope this helps.

  3. mjcmt

    mjcmt TPF Supporters Supporting Member

    Joined:
    Dec 14, 2010
    Messages:
    468
    Likes Received:
    382
    Location:
    NC, USA
    Can others edit my Photos:
    Photos NOT OK to edit


    Looks like red scale is ASA or ISO by todays standards. I believe you line up the reading from the meter and it shows you the correct f stop and shutter speed combination on the right side.
